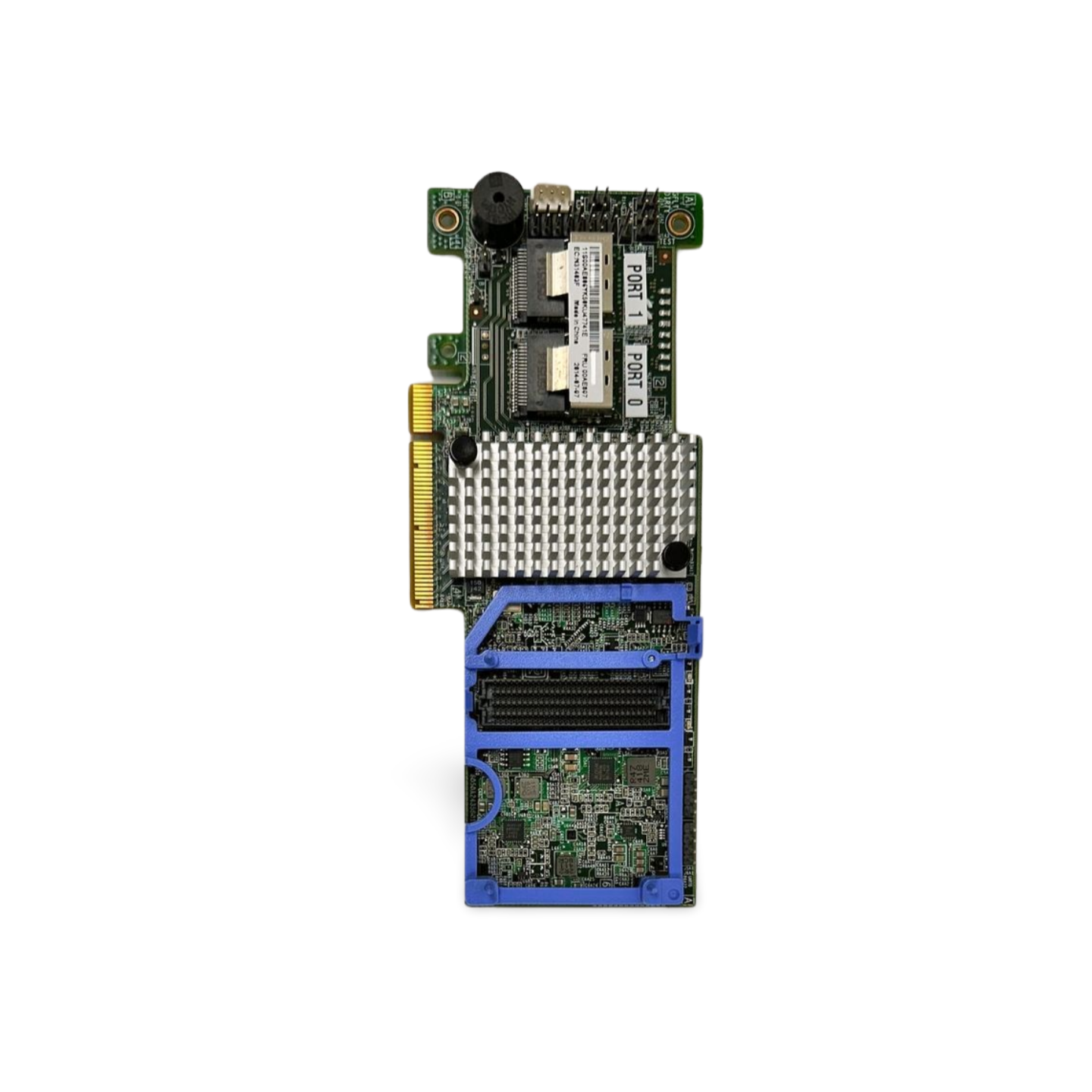

IBM M5110 IT Mode HBA 6Gbps SAS SATA Mini-SAS PCI-e 3.0 x8 TrueNAS unRAID ZFS

General introduction of the product

Optimize your storage setup with the IBM M5110 HBA (Host Bus Adapter), a versatile solution for integrating multiple SATA and SAS drives into your system. Ideal for software RAID configurations and NAS systems, this HBA enhances your storage capabilities with reliable performance and flexibility.

Key Features:

• Brand: IBM
• Model: M5110
• Type: Host Bus Adapter (HBA)
• Connectivity: PCI-e 3.0 x8
• Condition: Pre-Owned Like New

Description:

The IBM M5110 HBA is designed to directly support up to 8 SATA or SAS drives and can accommodate even more drives when used with a backplane or SAS expander. This HBA ensures efficient data transfer and robust performance by featuring a high-speed 6Gbps link with SAS2 or SATA3 hardware. With LSI IT Mode firmware, it allows for seamless drive passthrough to the operating system, making it perfect for a variety of software RAID configurations, including ZFS, btrfs, Linux mdraid, TrueNAS, unRAID, and Windows Disk Striping/Spanning. The card supports SMART data pass-through and offers both BIOS and UEFI modes for flexible system integration. Note that this HBA does not provide hardware RAID capabilities.

Additional Features:

• Compatible with SATA II, SATA III, SAS1, and SAS2 drives
• Maximum 8 directly attached drives; additional drives via backplane or SAS expander
• 6Gbps maximum bandwidth per drive
• 48Gbps maximum Mini-SAS bandwidth (24Gbps per port)
• 64Gbps maximum PCI-e bandwidth

Why Choose the IBM M5110 HBA:

The IBM M5110 HBA is an excellent choice for users seeking a reliable and high-performance solution to manage and expand their storage infrastructure. Its flexibility in drive support, high-speed connectivity, and compatibility with various RAID configurations make it a valuable component for enhancing your system’s storage capabilities.
